Introduction
With the explosive growth of data traffic and the rise of AI-driven clusters, data centers demand ever-higher density and efficiency. At the heart of this transformation is the MT ferrule, a critical component used in MPO connectors and other multi-core optical connectors.
In this article, we explain what the MT ferrule is, its structure, key features, and why it is essential for data center connectivity and next-generation communication networks.
What is an MT Ferrule?

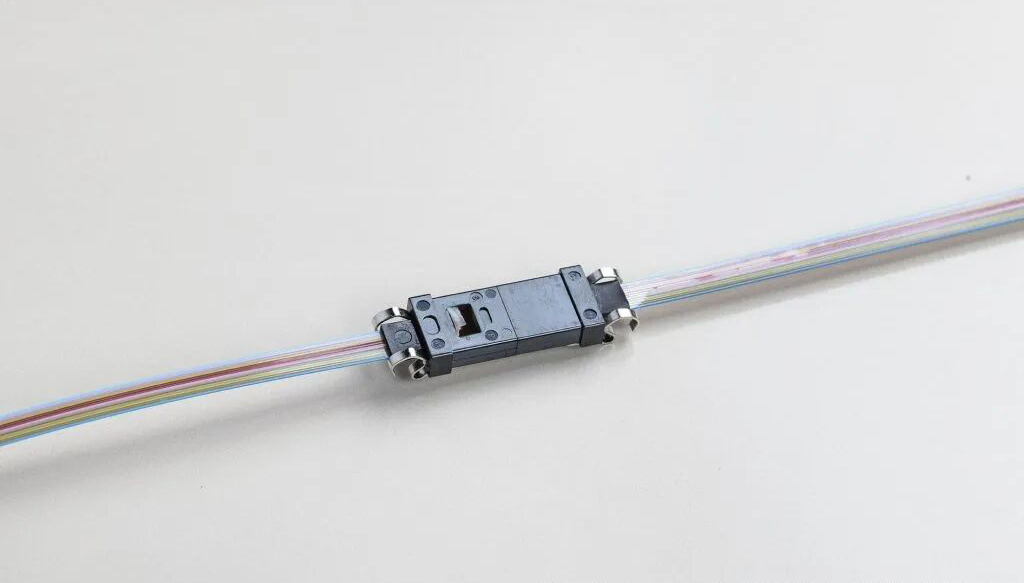

The MT (Mechanical Transfer) ferrule is a precision-engineered part designed to align and secure multiple optical fibers within a connector. Unlike traditional single-core ferrules, the MT ferrule can hold 12, 16, 24 fibers or more in a single compact structure.
This makes it the foundation of MPO (Multi-Fiber Push-On) connectors, which are now the global standard in high-density fiber optic cabling.
Key Features of the MT Ferrule
High-Density Connection – Enables simultaneous alignment of multiple fibers, significantly saving rack space.

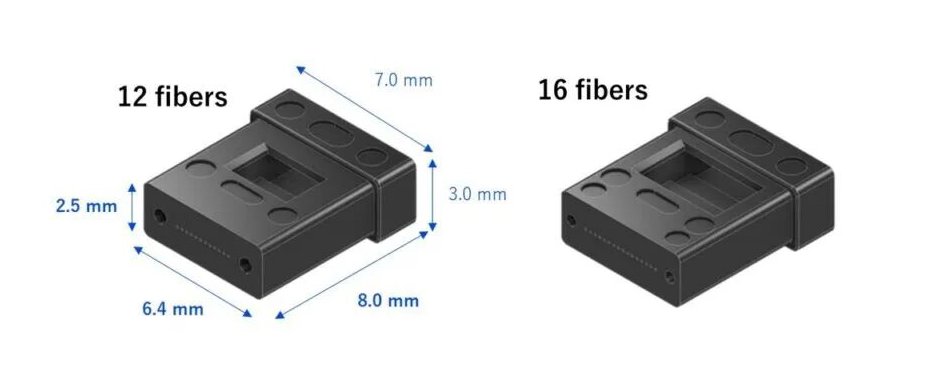

Standardized Dimensions – With a 6.4 mm × 2.5 mm interface, MT ferrules are compatible across manufacturers.
Improved Efficiency – Reduces installation and maintenance time in large-scale deployments.
Precision Performance – High-quality ferrules ensure low insertion loss and excellent optical alignment.
Applications in Data Centers
MT ferrules are the backbone of MPO/MTP cabling systems, widely used in:

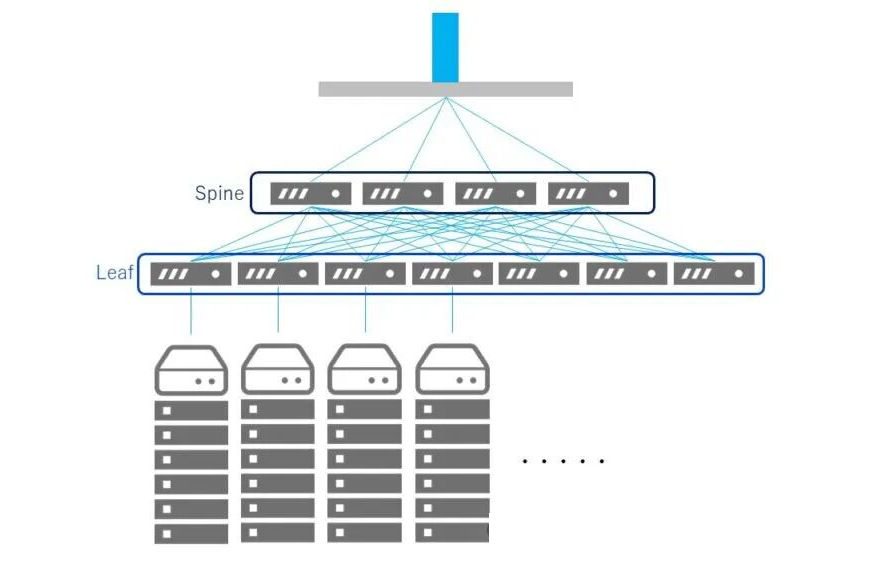

Data center backbone connections (core to leaf switches)
High-density ToR (Top of Rack) links
AI and HPC clusters requiring massive bandwidth
Cloud computing and 5G networks
In these scenarios, the ability to handle multiple fibers in one compact connector is vital for scaling bandwidth while minimizing physical space.
Choosing the Right MT Ferrule
When selecting an MT ferrule, consider the following:
Fiber count: 12F, 24F, 32F, 36F, or even 48F options are available.
Fiber type: Single-mode ferrules (for long-distance, high-capacity) vs. Multi-mode ferrules (for short- to mid-distance).
Precision: High-quality ferrules reduce optical loss and ensure stable performance.
Compatibility: Ensure seamless integration with MPO/MTP connectors, transceivers, and cables.
Future Trends: Higher Density & Precision
As data centers continue to scale, the demand for:
Ultra-multi-core ferrules (32F, 36F, 48F)
High-precision single-mode ferrules
Miniaturized MPO connectors
is rapidly increasing. These innovations allow more fibers per connector, reducing cabling complexity while boosting overall network capacity.
Conclusion
The MT ferrule is more than just a small plastic part—it is the key enabler of high-density MPO connectivity in data centers and modern communication infrastructure.
By choosing the right MT ferrule, network operators can ensure efficient, reliable, and scalable optical connectivity for the future of AI, cloud, and 5G networks.
